By Samsung


$1,599.00 $1,614.00
Tax included.
Key Features
  • 3 Zones with Dual Ring
  • 9 Power levels + Max Boost
  • Wi-Fi® Smart Control
  • Net Dimensions: 690 x 645 x 108 mm (WDH)
  • Cut-out Dimensions: 560 x 480 x 58 mm (WDH)
  • 2 years warranty by Samsung

We try our best to provide accurate product information from the manufacturer's or agent's website. However, the information on this page may change without notice, and it may not be accurate if there are specification changes. We recommend checking the manufacturer's site for the latest specs and information.


While all items available for online purchase can be added to your cart, we cannot guarantee their availability at the time of order processing.

In case we are unable to fulfill your order, we will get in touch with you to provide an alternative option or arrange a full refund.


If your product is eligible for warranty, you can find its registration link here.

Craft your culinary creations to perfection

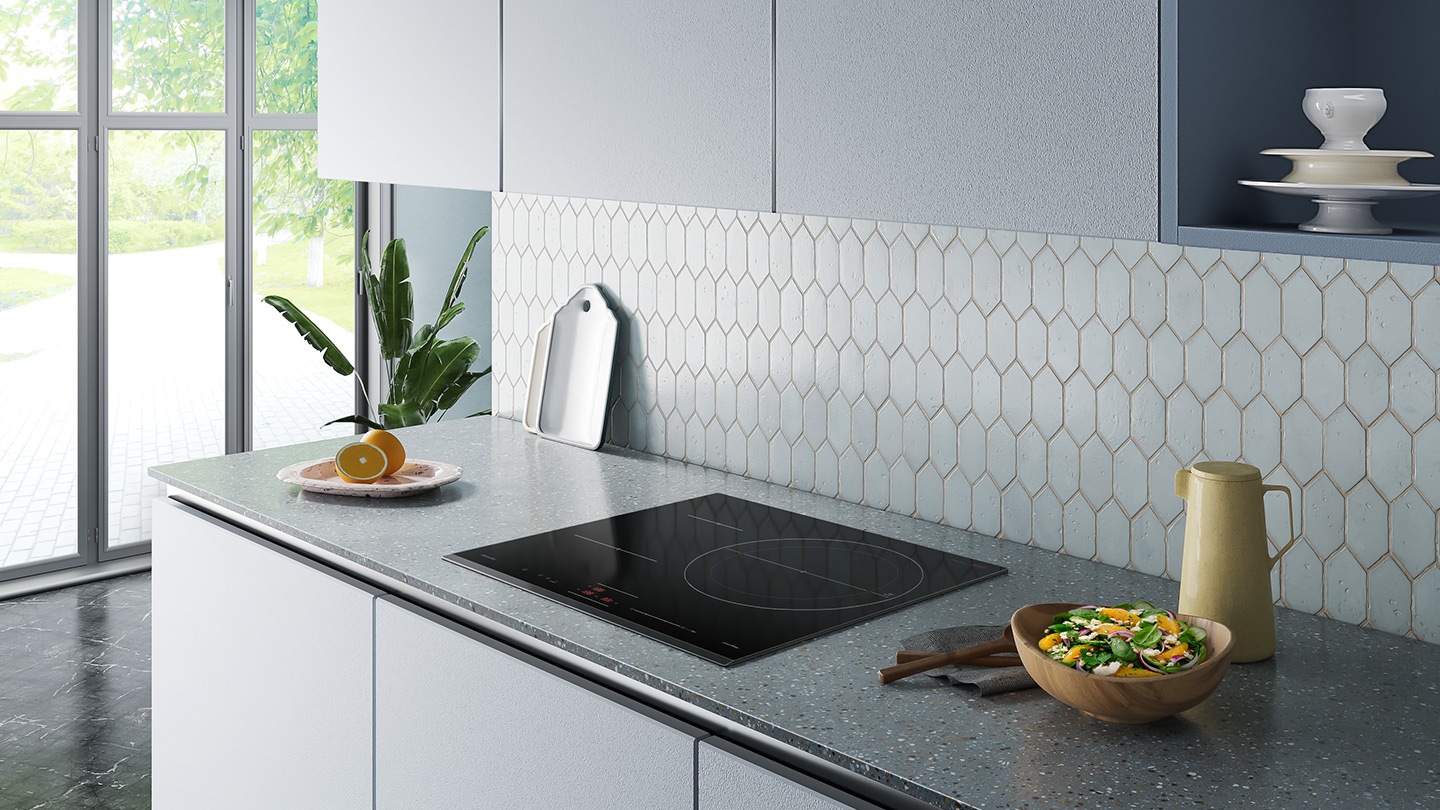

NZ8500BM is installed in the kitchen. It goes well with the modern and luxurious mood.


Flexible & efficient

Experience enhanced cooking efficiency and flexibility with the innovative Dual Ring*. It has two concentric rings that can seamlessly combine into one large 28cm Burner**. Whether you're preparing paella or delicate crepes, it will accommodate pots and pans of various sizes by automatically selecting the ideal ring size for your cookware.

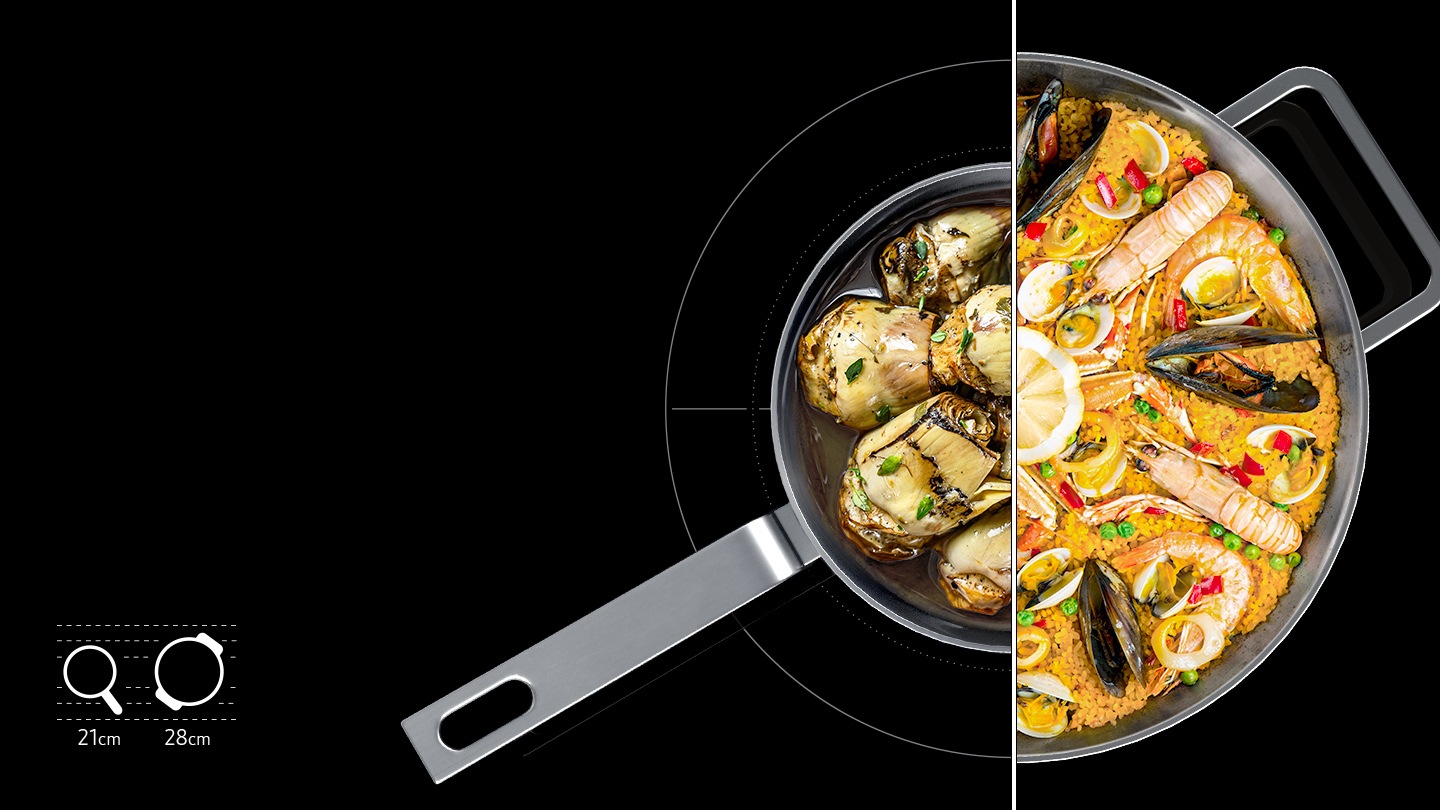

The two concentric ring lines on the cooktop let the user know where to place the different sized pans and pots. Inner concentric ring lines size is 21cm, Outer concentric ring lines size is 28cm.

*Available on certain models. **Based on the 60cm models. Each ring can accommodate cookware with the following diameters: Outer ring - up to 28cm, Inner ring - up to 21cm.


Wi-Fi Connectivity

Experience greater convenience with Wi-Fi Connectivity. Using the SmartThings App*, you can remotely monitor** your cooktop from anywhere, ensuring a peace of mind. This feature allows you to check if the rings are on, even when you're away, and saves you time by remotely setting the timer and receive alerts. Additionally, it aids in troubleshooting errors, making your cooking experience worry-free.

Two pots with delicious food are boiling on the cooktop, and a woman is monitoring the cooktop status remotely near the sofa via the SmartThings app on her smartphone.

* Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required.
** Only monitoring is available. The cooktop cannot be turned on/off using a smartphone.


Auto Connectivity

Save the time and effort of controlling the hood and hob separately. The Auto Connectivity function wirelessly aligns their status. It lets you control the hood using the one-touch controls of the hob*. You can instantly turn them on and off together for the ultimate in convenience.

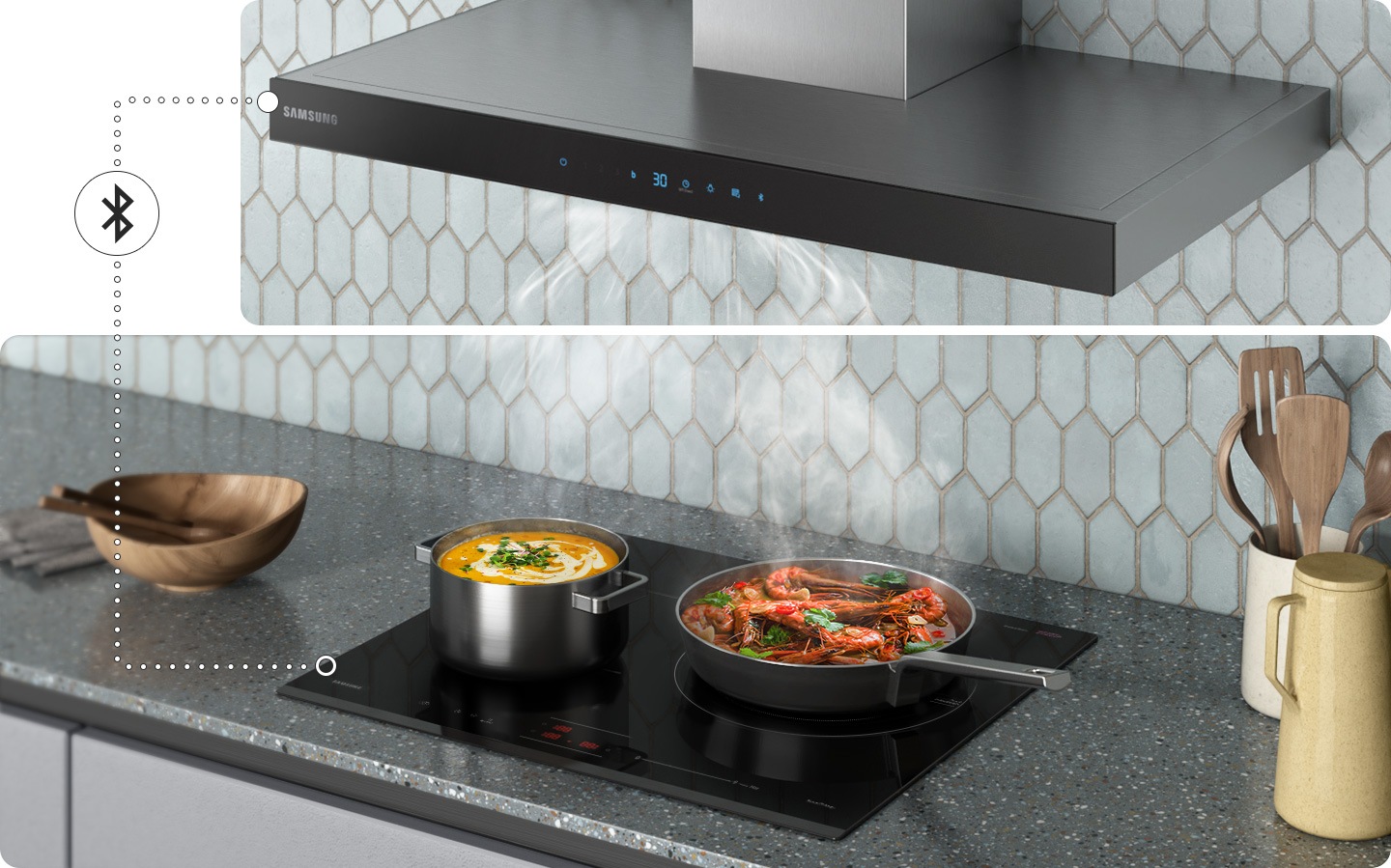

You can control the hood and cooktop at once by connecting them via Bluetooth.

* Only available when used in combination with a Samsung hood.


Slim Fit

Add useful extra storage space to your kitchen*. The hob’s slim fit design fits harmoniously with a wide variety of worktops regardless of their thickness. It also means there is more space for a larger storage drawer. Plus, it is easier to fit, reducing the time and cost of installation.

* Compared to the NZ63N9777GK/E1 model. The cooktop’s thickness is reduced from 56mm to 48mm and the minimum worktop thickness is reduced from 20cm to 10mm.※ The height of the cooktop is approximately 44mm excluding the ceramic glass, which is 4mm thick.

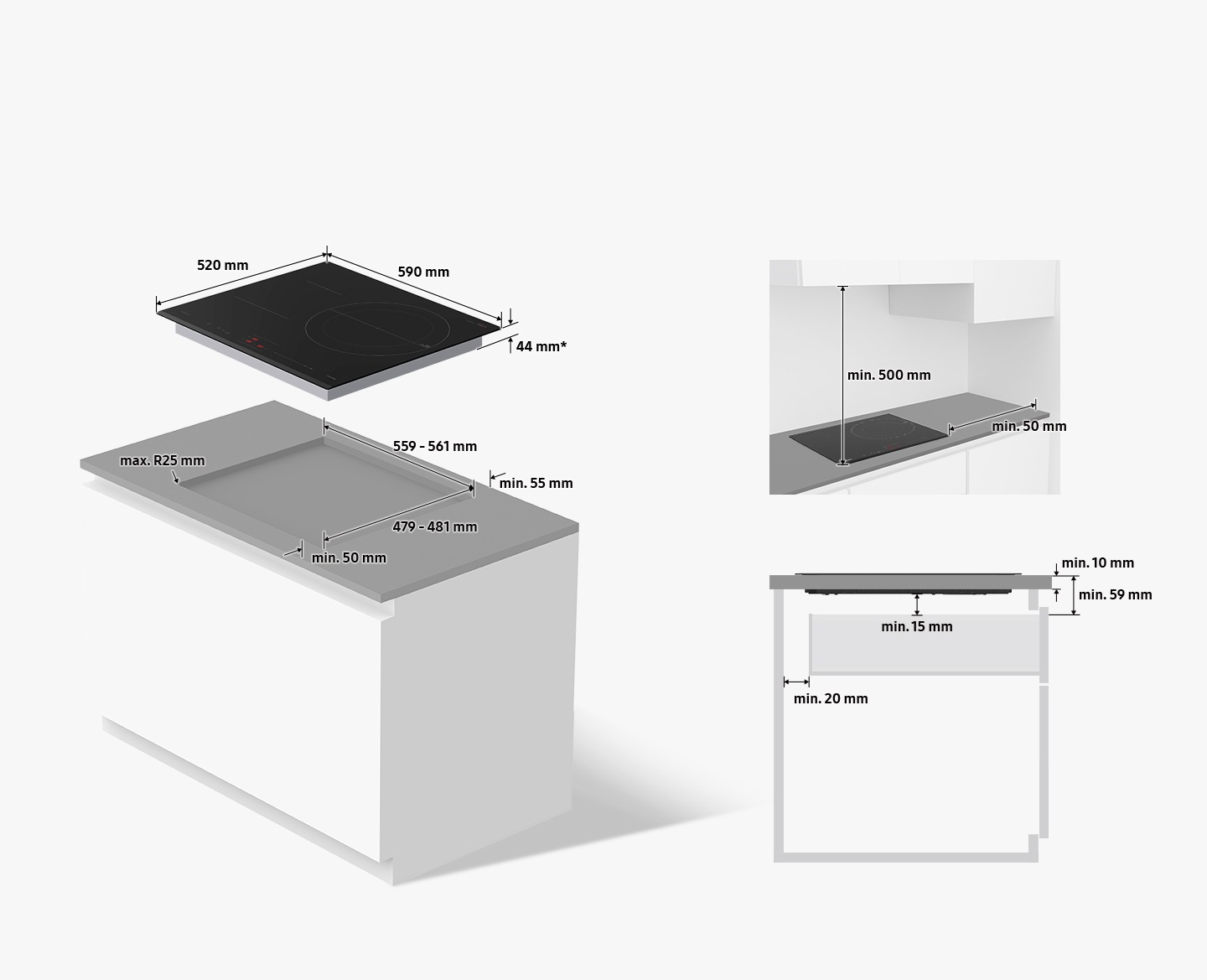

How to measure

The height of the cooktop is approximately 44mm excluding the ceramic glass, which is 4mm thick.

The cooktop measures 590mm wide, 520mm deep, and 44mm* high. The 44mm* height must fit inside the countertop cutout. Countertop cutouts must be 559-561mm wide, 479-481mm deep, and maximum R25mm round corners. There must be minimum 55mm of uncut space on the back of the cutout and minimum 50mm of uncut space on the front of the cutout. The minimum height of 15mm under the cooktop plus the minimum thickness of the countertop of 10mm must be minimum 59mm. Drawers installed under the cooktop must be minimum 20mm from the rear wall. When the cooktop is installed, there must be minimum 500mm of space above the cooktop and minimum 50mm to the right of the cooktop.




Model Type Install Built-in
Cooktop Frame 4 Metal Frame
Control Method Touch
Features Child Safety Lock
Kitchen Timer
Residual Heat Indicator
Safety Shutoff
High Temp. Limit
Auto Pan Detection
Sound on/off
Power On/Off
Cooktop 3 Burners
Smart WiFi Embedded
App Connectivity SmartThings App Support
Power/Ratings Total Power: 3.4 kW
Qty of Power Boost: 3
Power Level: 9 + Boost
Burner - Left Front: 180 mm - 1800 / 2800 W
Burner - Left Rear: 145 mm - 1400 / 2000 kW
Burner - Right: 280 mm - 2400 / 3400 W
Package (WxHxD) 600 x 48 x 520 mm
Cutout (WxHxD) 560 x 480 mm
Net (WxHxD) 690 x 108 x 645 mm
Weight (Gross) 12.6 kg
