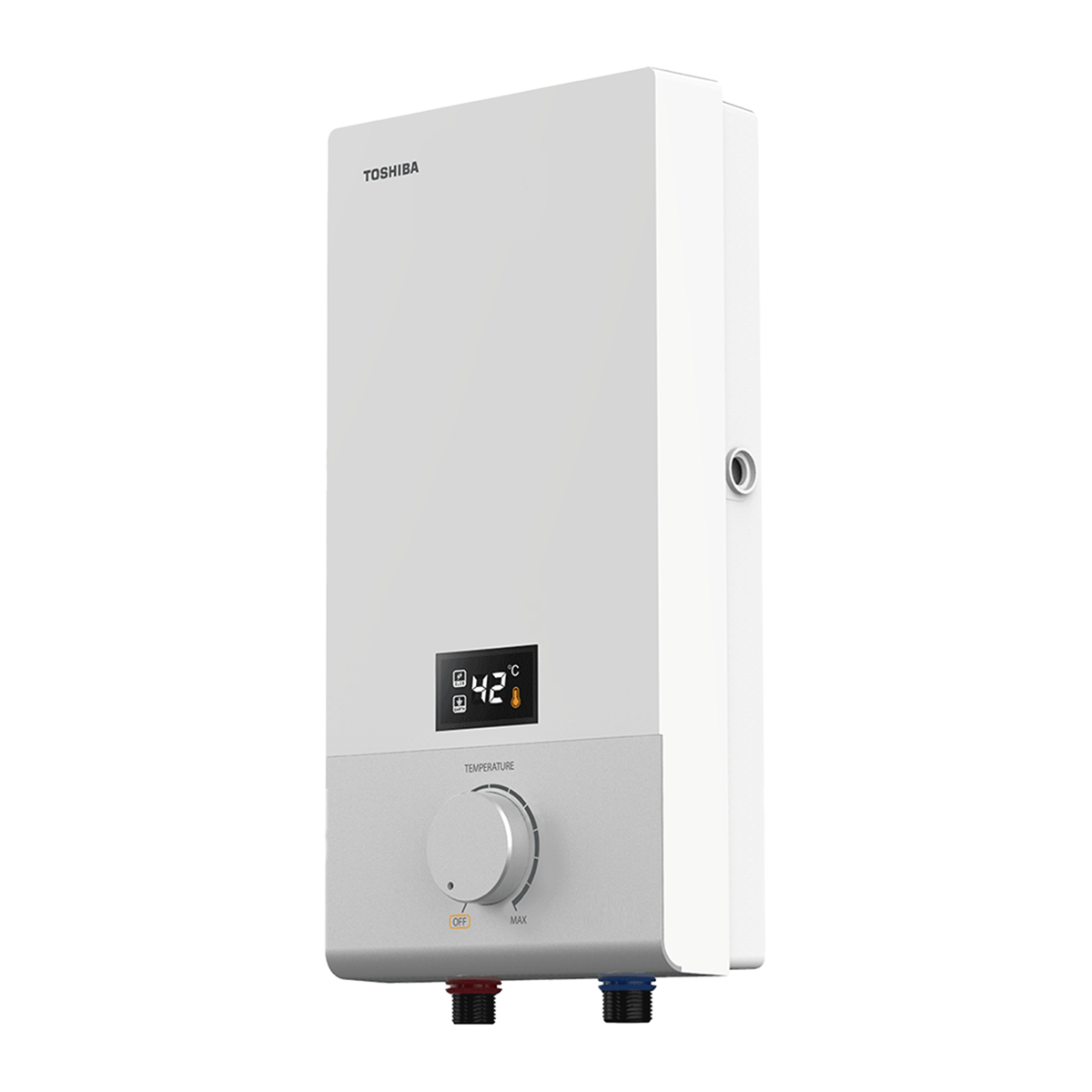

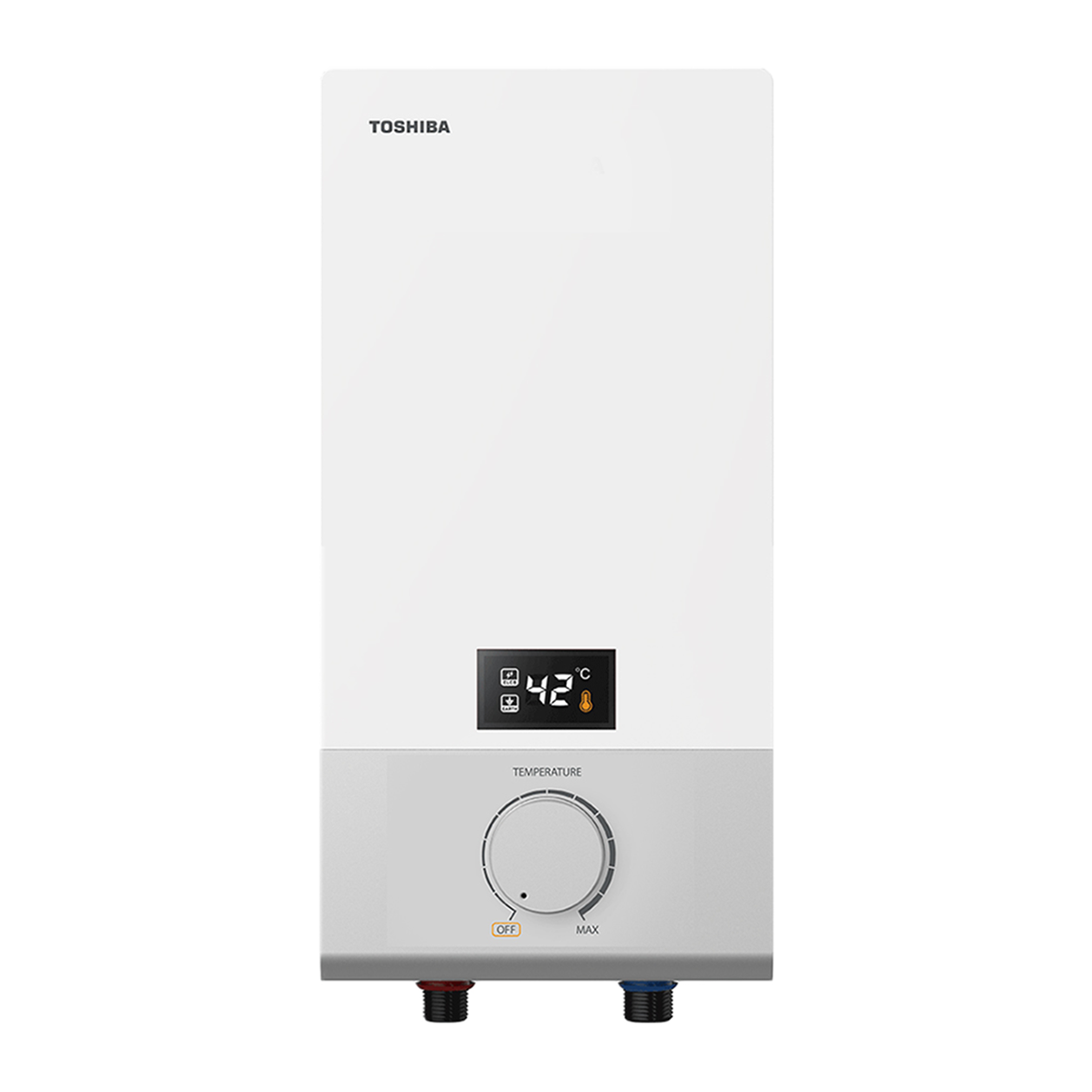

TOSHIBA DSK33ES5SW INSTANT WATER HEATER / CONSTANT TEMPERATURE WITH LCD DISPLAY

$229.00

$159.00

INSTALLATION

SPECIFICATIONS

  • Auto Test
  • Built-in ELCB
  • Line Fault indicator
  • NTC Thermal Cut-Out
  • Built-in auto flow sensor
  • Double Copper Heating Element
  • Splash-proof IP25 Standard
  • Stepless Electronic Temperature Control

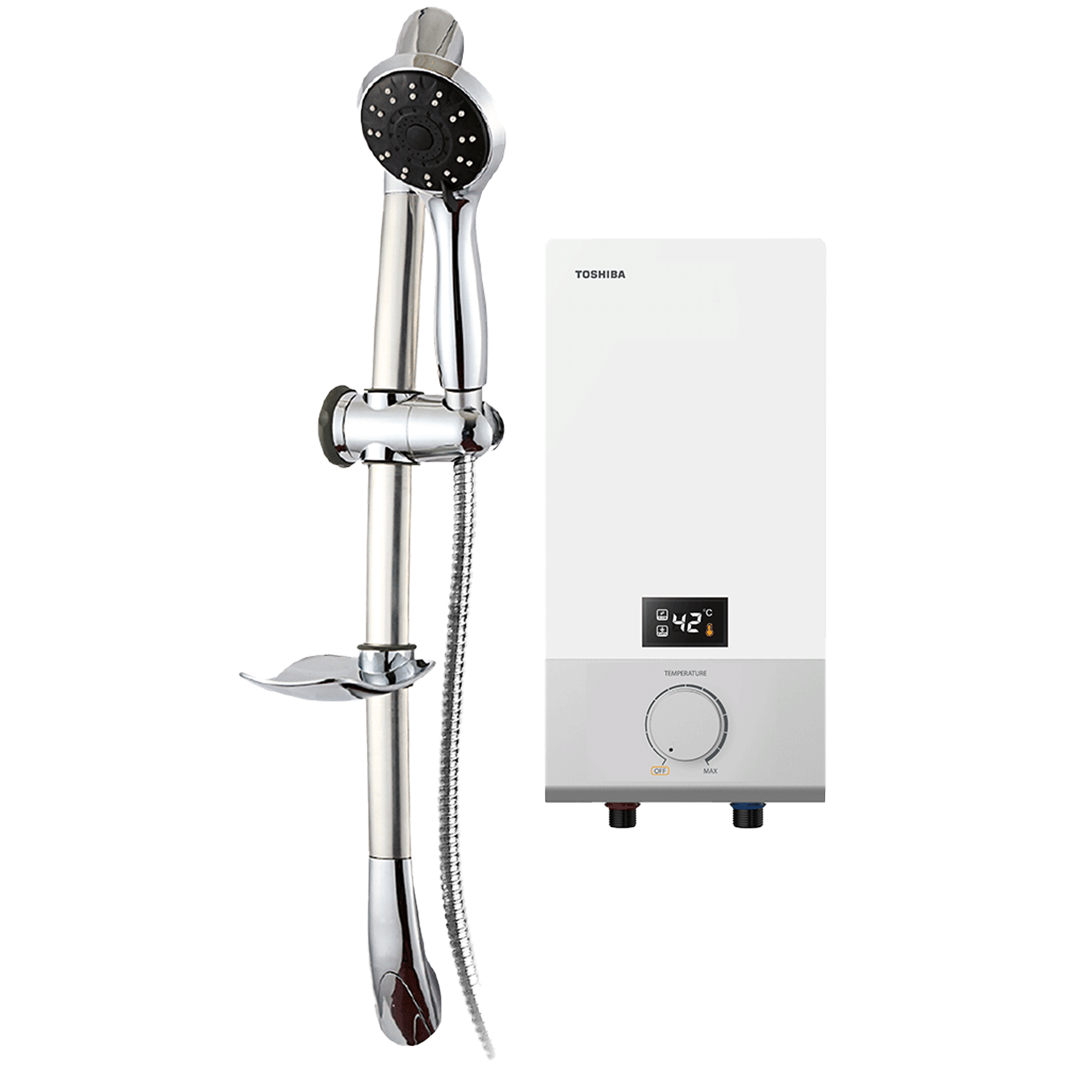

  • 5 spray Pattern showerhead
  • CONSTANT TEMPERATURE PERFORMANCE DURING SHOWER
  • Warranty : 2 years Parts, 10 years on heating element
Specification
APPLICATION VOLTAGE 230V±10%,Extreme conditions 260V
APPLICABLE AIR HUMIDITY 50-98%RH
DISCONNECT MODE Double Disconnection
STRONG CONNECTION Japan JST Connector
POWER SUPPLY VOLTAGE & FREQUENCY (V/HZ) 230V~,1Ph 50Hz
POWER COMSUPTION 3300W
RATED CURRENT 14.3A
MINIMUM INLET PRESSURE 0.03MPa
MAXIMUM INLET PRESSURE 0.3MPa
MAX OUTLET WATER TEMPERATURE(°C) 48℃
CONSTANT TEMPERATURE PERFORMANCE ±2℃
TANK/HEATING ELEMENT COMPONENTS LIFE TIME 10 years
RATED PRESSSURE 0 MPa
MINIMUM FLOW RATE 1.5L/min
INLET AND OUTLET PIPE JOINT DIMENSION G1/2″
OPERATING CONDITION Open type
PUMP No
APPLICABLE WATER PRESSURE 0.03~0.3Mpa
FEED WATER TEMPERATURE 5~40℃
APPLICABLE FEED WATER Tap water, TDS≤450mg/L
Material
HEATING TUBE MATERIAL PA66+30%GF
FRONT HOUSING MATERIALS(ABS/PP/HIPS) ABS
BACK BASE MATERIALS (ABS/PP/HIPS) ABS
THE INLET / OUTLET PIPE MATERIALS PA66+30%GF
HEATING TUBE MATERIAL Copper
WATER PROOF CLASS IP25
PROTECTION CLASS Class I
Dimension
PRODUCT DIMENSIONS(MM) 200*400*97 mm
PACKING DIMENSIONS(MM) 660*260*125 mm
OUTER PACKING DIMENSIONS(MM) 675*520*280 mm
NUMBER OF OUTER PACKING BOX 4
N.W.(KG) 1.95
