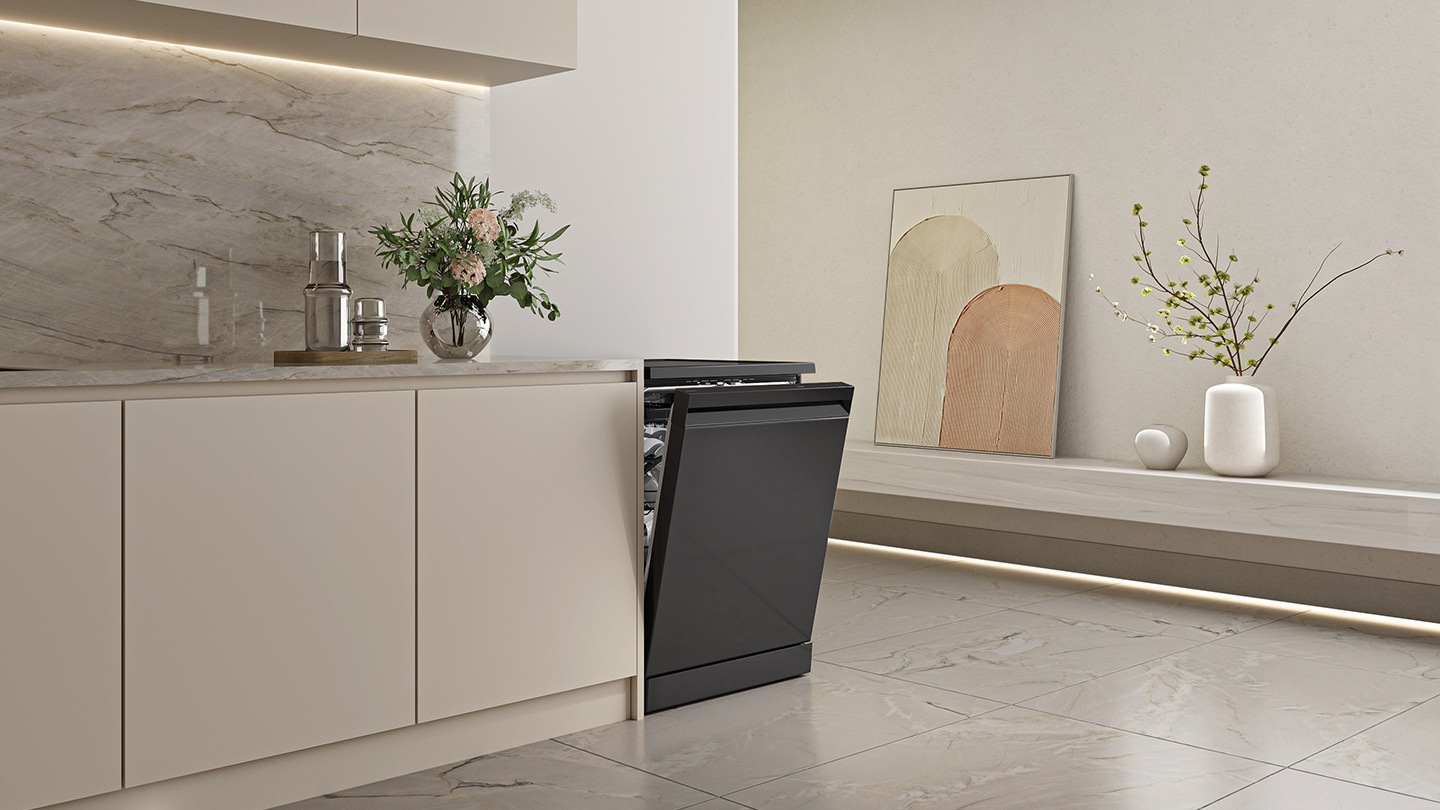

Powerfully Efficient with AI

Intelligently thorough, precisely timed

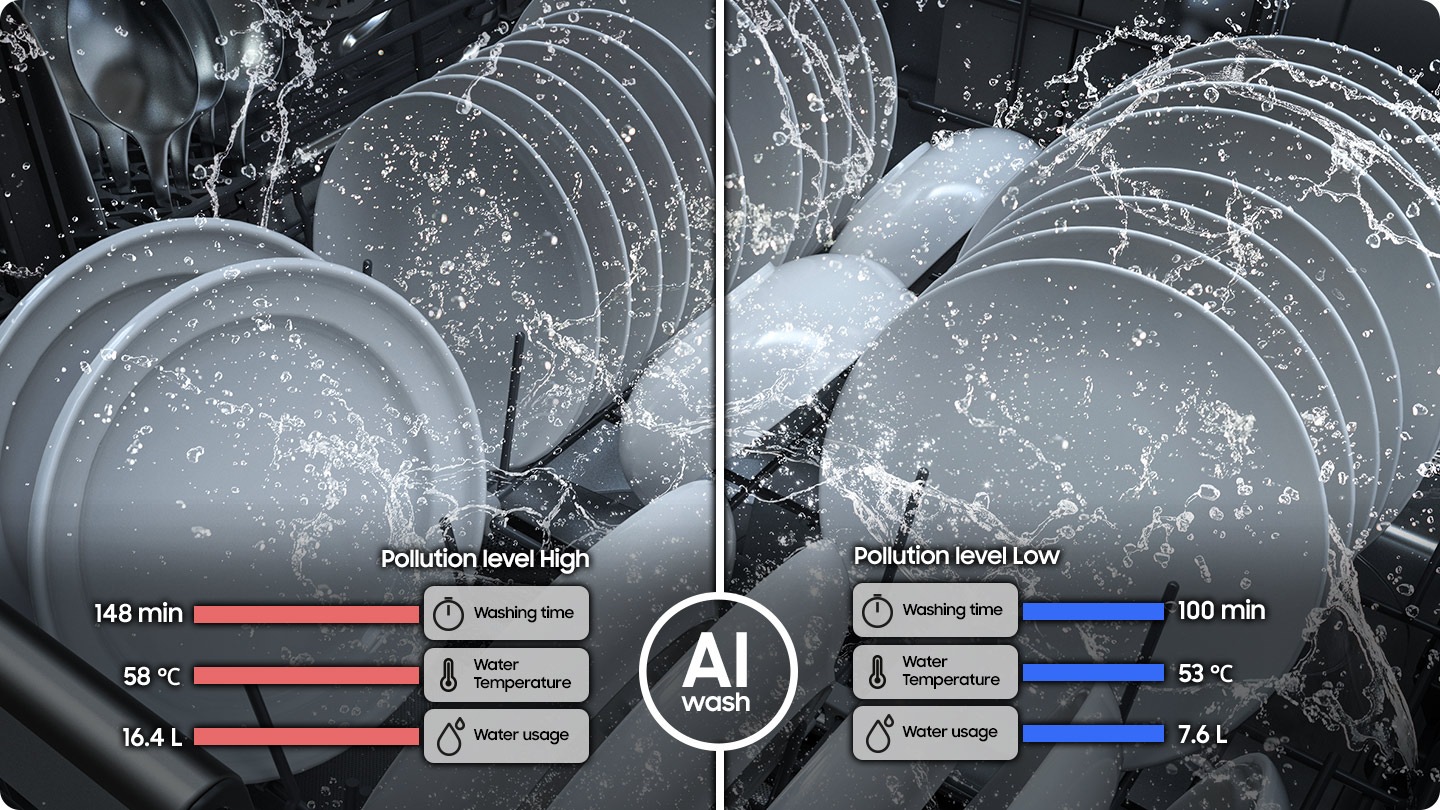

AI Wash
Clean dishes thoroughly* and efficiently. AI Wash uses a new high-resolution turbidity sensor and machine learning algorithm. It measures the amount of food particles in the water at each washing stage and intelligently optimises washing and rinsing cycles to remove stubborn leftover food and sticky residue effectively without the need for pre-rinsing. Everything comes out sparkling clean.
*Based on an AI-created algorithm. Actual results may vary depending on individual use.

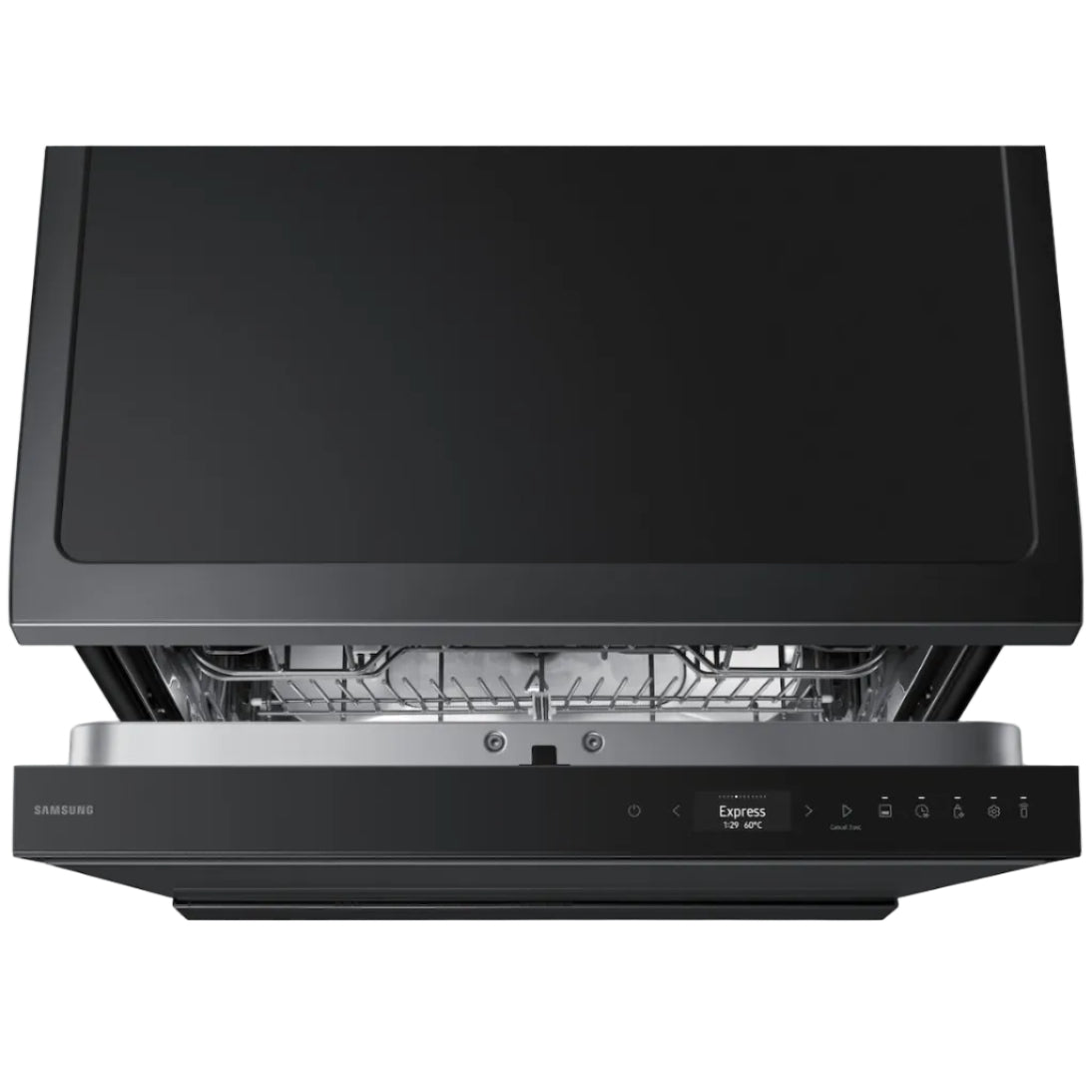

Simply push* to open effortlessly
Auto Open Door
Give your home a stylishly simple and seamless appearance. The dishwasher’s handle-less, flat door design harmoniously matches your kitchen furniture and has no handle to get in the way. The Auto Open Door opens gently and effortlessly with a simple push* on the upper part of the door. The push intensity can be adjusted in 3 stages through SmartThings**.
*Requires wireless network, a Samsung account and the Samsung SmartThings App. The Samsung SmartThings App supports Android OS 8.0 (Oreo) or later, which is optimized for Samsung smartphones. This App also supports iOS 13 or later for iPhone models. The SmartThings App is available in the App Store and Play Store.

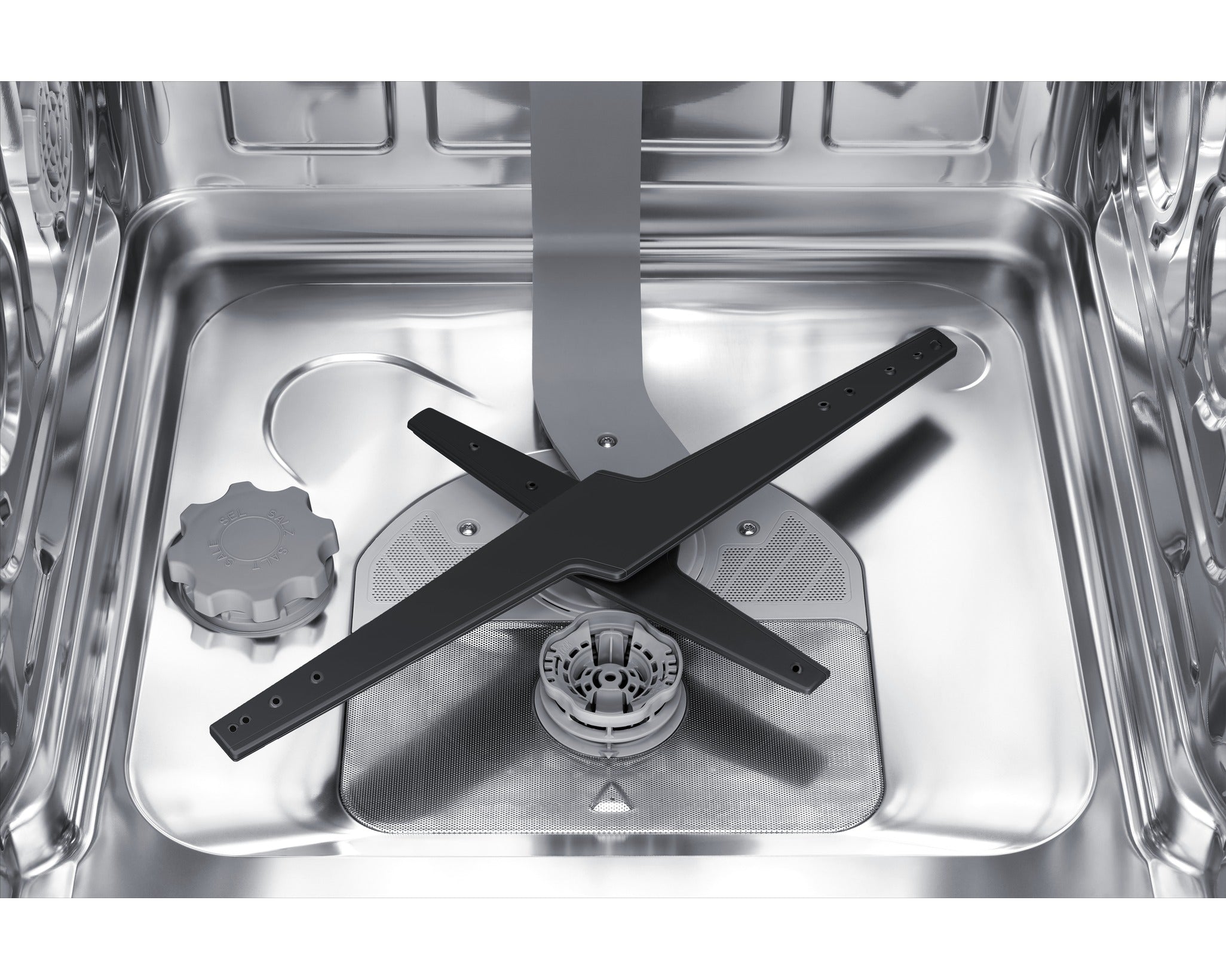

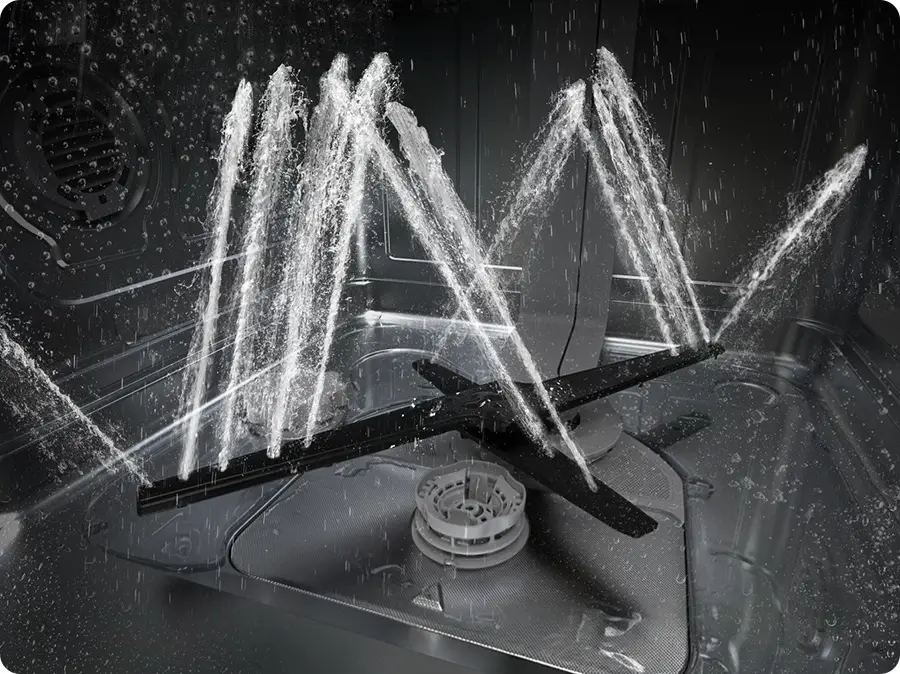

Intensive and thorough cleaning
Get outstanding washing results using WaterJet Clean™. With rotating dual wash arms, it delivers intensive cleaning from every angle. Its two spray arms have separate water jets and rotate simultaneously in opposite directions. They blast water in many different directions to get into hard to reach spots. So it cleans heavily soiled pots, pans and dishes rapidly and thoroughly.

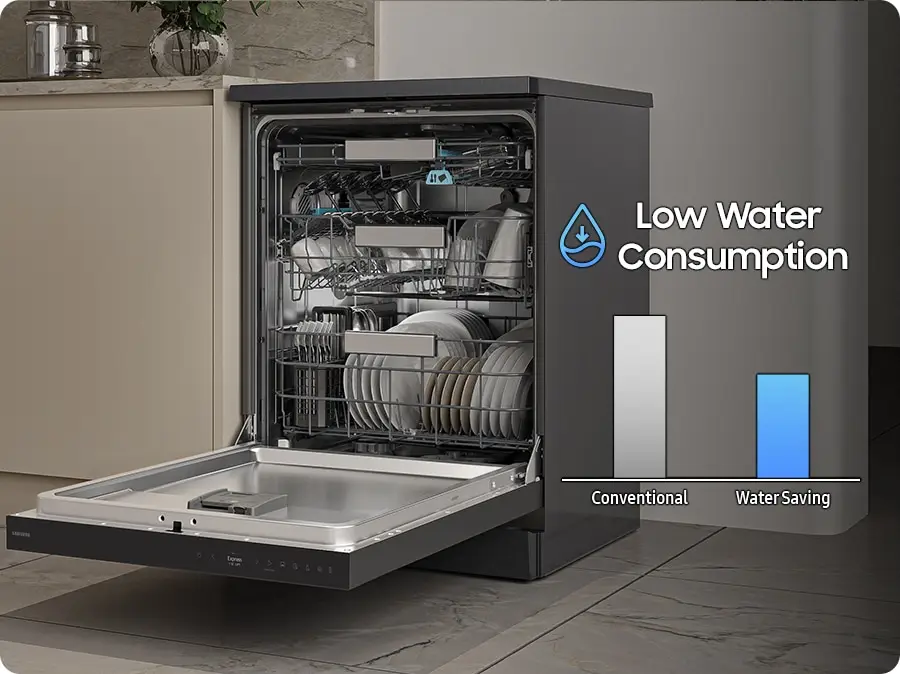

Optimised efficient water usage
Save water using as low as 7.5 liters* per cycle, without compromising washing performance. By optimising performance, you can control water usage to ensure only the necessary amount is used. This efficient operation helps reduce overall water consumption while maintaining reliable washing performance.

*The amount of water savings vary by model. Actual results may vary depending on load size, program, and usage conditions.

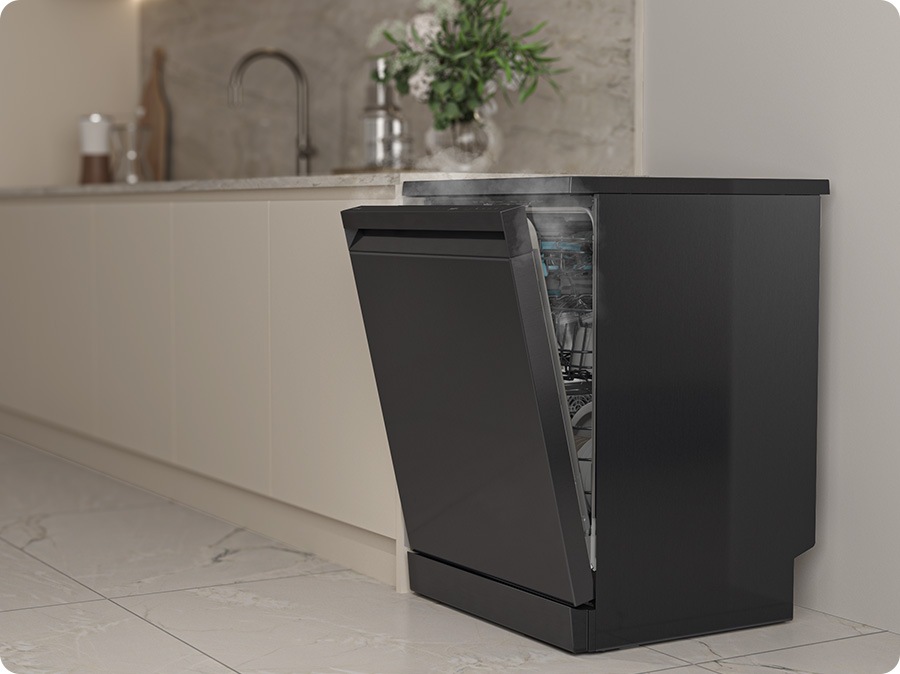

Automatic steam release for drying
Opens automatically* at the end of the cycle to release steam and reduce moisture. When cycles end, the door opens automatically to let steam escape, enabling fast and effective drying, while keeping the process simple and efficient. It reduces the need for using additional energy while making dishes ready to use.
Intensive and thorough cleaning
WaterJet Clean™
Get outstanding washing results using WaterJet Clean™. With rotating dual wash arms, it delivers intensive cleaning from every angle. Its two spray arms have separate water jets and rotate simultaneously in opposite directions. They blast water in many different directions to get into hard to reach spots. So it cleans heavily soiled pots, pans and dishes rapidly and thoroughly.
Optimised efficient water usage
Low Water Consumption
Save water using as low as 7.5 liters* per cycle, without compromising washing performance. By optimising performance, you can control water usage to ensure only the necessary amount is used. This efficient operation helps reduce overall water consumption while maintaining reliable washing performance.
*AutoRelease can be turned on/off in the SmartThings App.

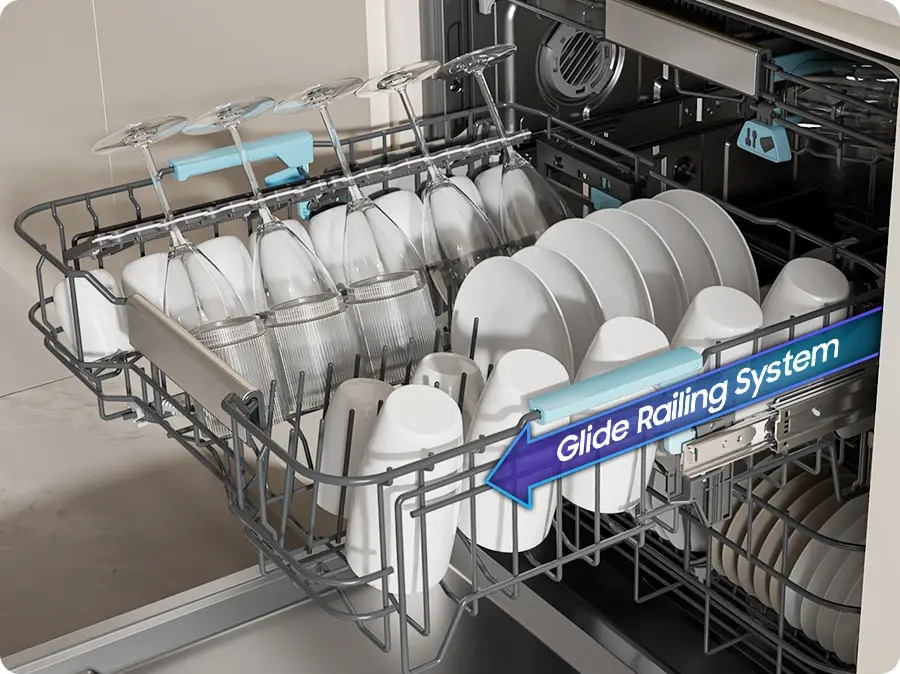

Move baskets easily
Pull out a basket full of dishes easily and safely. The Glide Railing system creates less friction, so the middle rack slides in and out smoothly. You can load or unload a basket full of dishes with lesser effort, even if it contains heavy pans. With stable metal instead of plastic roller shafts supporting on both sides, it reduces the risk of items falling out.

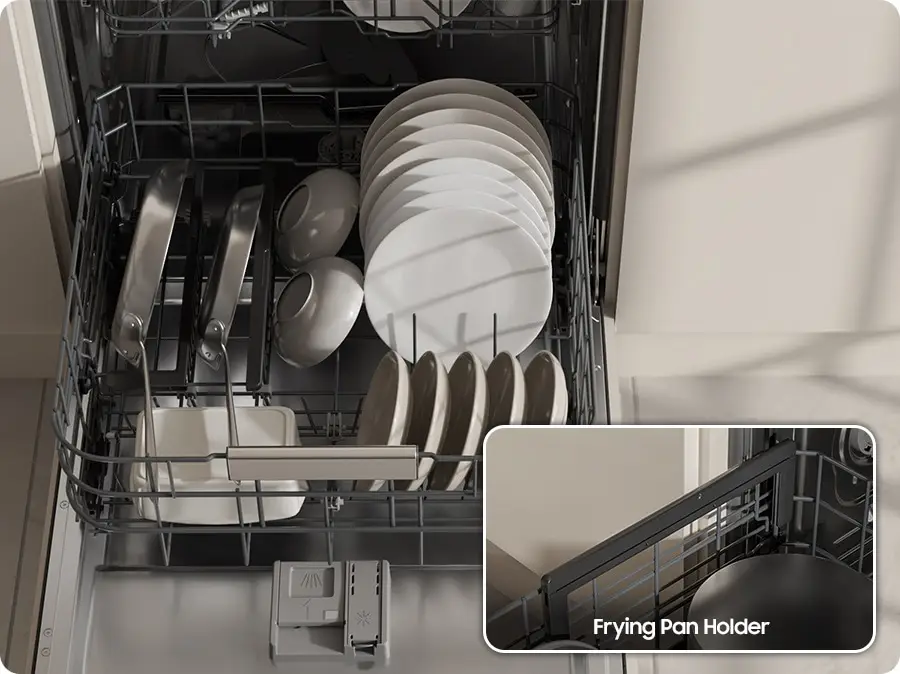

Optimal space
You no longer need to stack dishes or hand wash frying pans. Use the two designated frying pan holder** racks for effective cleaning. They also help you keep everything organised neatly and save space for extra dishes.

*It can accommodate cookware that is up to 28cm in height.
Enjoy a quiet home
Reduce noise in your home. The dishwasher works smoothly and quietly – and has a very low noise level. It also has an Extra Silence program that washes a little bit slower than a normal cycle, but creates lesser noise than the ECO program*. The amount of noise it makes is as quiet as a library. So now your home can be as noticeably quiet as your dishes are exceptionally clean.

*Based on testing conducted in an internal laboratory. The noise level of the DW90H79H1B0U1 / DW80H77U3UFU1 models: Extra Silence program = 41dB, ECO program = 43dB, Quiet Library 40dB.

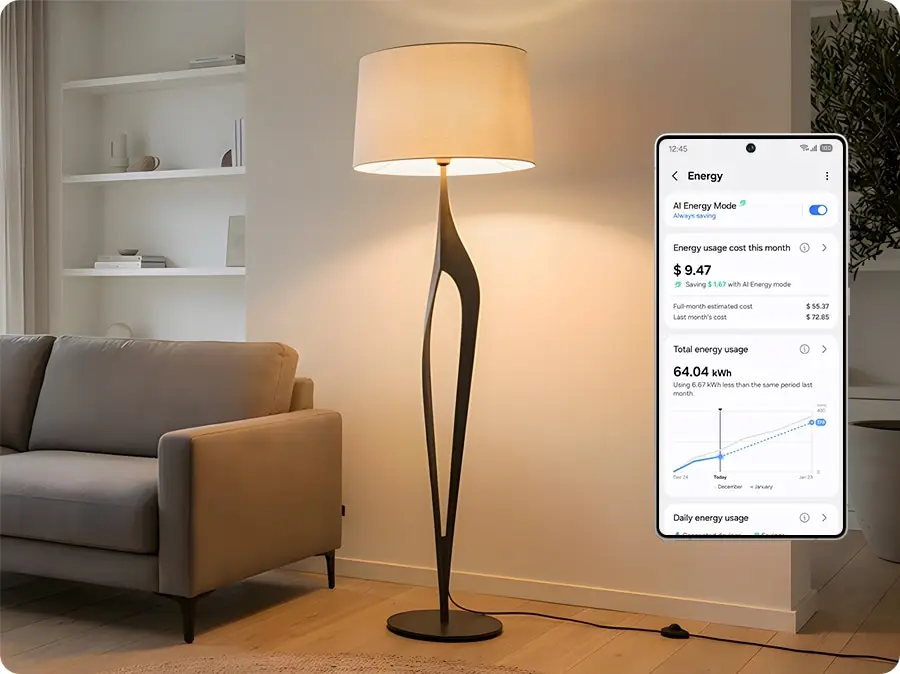

Up to 28%*** lesser energy
SmartThings Energy* monitors energy consumption by predicting usage and estimating monthly electricity bills. It alerts you if the bill is likely to exceed target. Activating AI Energy Mode** can reduce energy use up to 28%*** by intelligently lowering washing temperature using turbidity data.

*Available on Android and iOS devices. Wi-Fi connection and Samsung account are required.** AI Energy Mode can be used with 6 washing cycles: Intensive, Express, Extra Silence, Pots and Pans, Plastic, Auto.*** Based on internal testing on DW90H79JAI0U1 / DW80H77H3B0U1 models to measure the energy consumption of the Pots and Pans program with and without using AI Energy mode, in accordance with the EN 60436 standards. Result: Pots and Pans program = 1,500Wh/cycle and Pots and Pans program with AI Energy mode = 1,150Wh/cycle, which is a reduction of 28%. Results may vary depending on the actual usage conditions.
Connect your life
Optimise how you use the dishwasher to suit your lifestyle. The SmartThings App* allows you to remotely monitor and control it on a smartphone and download 4 specialist programs**. It also suggests courses based on what you cooked***, while helping you reduce energy use, manage consumables, and diagnosing and resolving errors.
*Available on Android and iOS devices. Wi-Fi connection and Samsung account are required. Bixby is Samsung’s brand of artificial intelligence (AI) / Internet of Things (IoT) voice assistant. Bixby service availability and features may vary depending on country, carrier, device model and OS version. Bixby recognises certain accents and dialects of English (US, UK, Indian), Chinese, Korean, French, German, Italian, Spanish, and Portuguese.** “Pots and Pans”, “Plastic”, “Baby Care” or “Drinkware” cycle.*** Only available when using Smart Cook.
Customise your cleaning
Customise your cleaning experience whenever you want. A Download Program option allows you to choose additional specialist programs and instantly download the one you want using the SmartThings App* on a smartphone. The choices available are “Pots and Pans”, “Plastic”, “Baby Care” or “Drinkware” cycle.

*Available on Android and iOS devices. Wi-Fi connection and Samsung account are required.
Convenient remote care
Get proactive prediction and diagnosis* with continuous monitoring, and resolve problems remotely. Home Appliance Remote Management (HRM)** fixes issues, offers usage tips and enables remote troubleshooting to help avoid service visits. Prevent surprise breakdowns and enjoy long-lasting reliability.

*Includes both fault and non-fault diagnosis. The fault diagnosis is based on an error code on the product while the non-fault diagnosis is a perceived defect that occurs as a usability issue without generating an error code. Certain issues can be detected by AI based on the operational data, regardless of whether it generates an error code or not.** Only available on SmartThings-supported models produced after 2018. Requires the SmartThings App, which is available on Android and iOS devices. Wi-Fi connection and Samsung account are also required.
How to measure

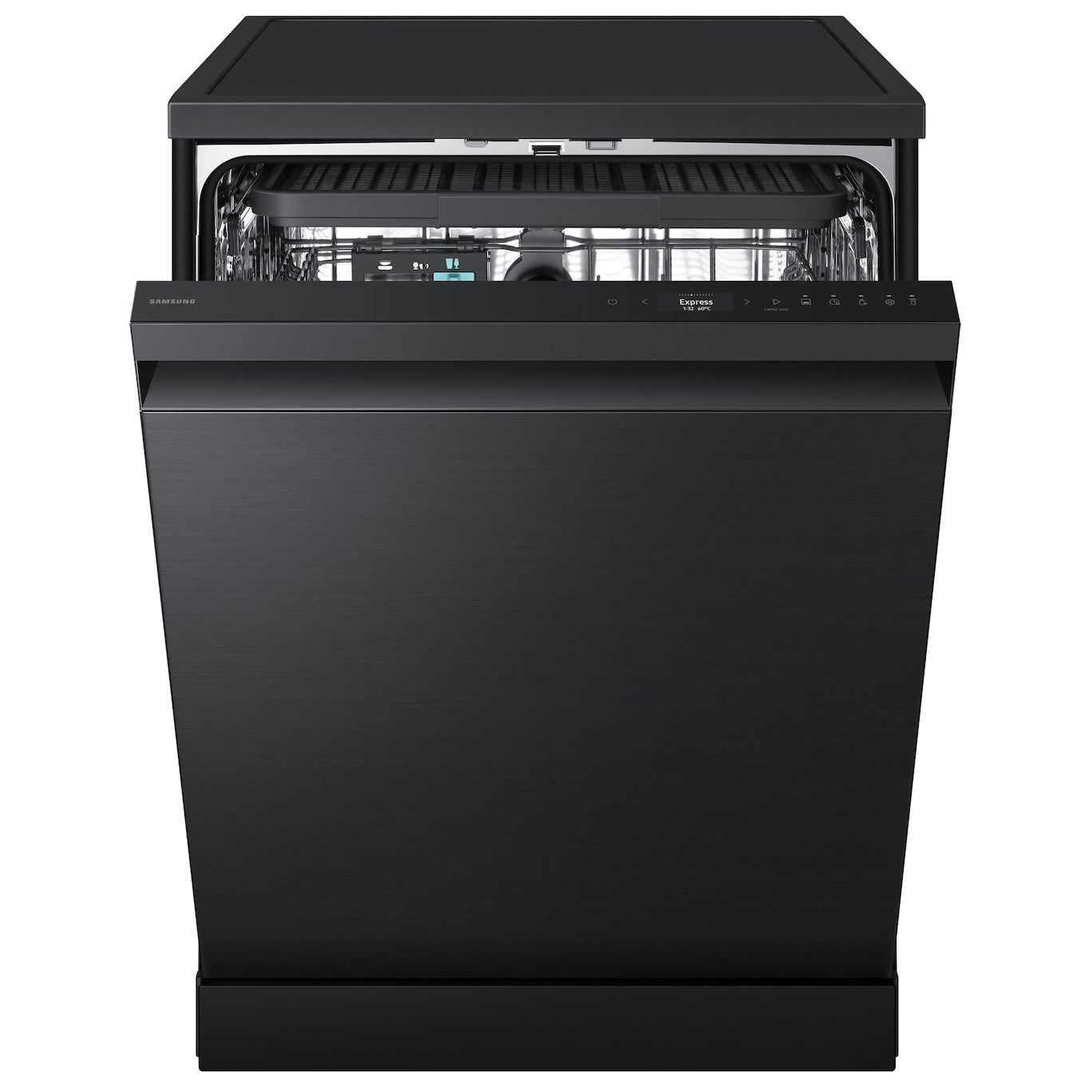

Specifications
| Model Code |
DW80H73KBFFSP |
| Design |
Install Type |
Freestanding |
| Size |
24" |
| Control Type |
Hidden Touch |
| Color/Material |
Black DOI |
| Display Light Color |
White |
| Washing Type |
WaterJet Clean™ |
| Performance |
Capacity (Place Setting) |
14 P/S |
| Dry System |
AutoRelease™ |
| Water Efficiency |
4Ticks |
| Noise Level (dB(A)) |
42 dB(A) |
| Noise @ Extra Silence Cycle (dB(A)) |
40 dB(A) |
| Programs |
Number of Programs |
12 |
| AI Wash |
Yes |
| Auto |
No |
| Intensive |
Yes |
| Delicate |
Yes |
| Eco |
Yes |
| Express |
Yes |
| Pre Wash |
Yes |
| Pots and Pans |
Yes |
| Extra Silence |
Yes |
| Machine Care |
Yes |
| Downalod |
No |
| Baby Care |
Yes |
| Plastic |
Yes |
| Drinkware |
Yes |
| Option |
Number of Option |
5 |
| Delay Start |
Yes |
| Half load |
Yes |
| Hygiene Plus |
Yes |
| Speed Booster |
Yes |
| Smart Control |
Yes |
| Upper Rack |
Basket Handle |
Yes |
| Foldable Cup Shelves |
Yes |
| Knife Rack |
No |
| Adjustable Height |
Yes |
| Flex Load Guide Tines |
Yes |
| Silicon Wine Glass Protector |
No |
| Lower Rack |
Basket Handle |
Yes |
| Fold Down Tines |
Yes |
| Foldable Cup Shelves |
No |
| Frying Pan Holder |
Yes |
| Cutlery Basket |
Cutlery Tray |
Yes |
| 3rd Rack Washing System |
No |
| Flex Load 3rd Tray Design |
No |
| Cutlery Basket |
No |
| General Feature |
AOD |
Yes |
| Aqua Stop |
Yes |
| Tub Material |
STSS |
| Leakage Sensor |
Yes |
| Number of Wash Arm |
Upper / Mid / Low |
| Water Softner |
Yes |
| Dimension |
Net Width |
598 mm |
| Net Height |
845 mm |
| Net Depth |
600 mm |
| Net Weight (kg) |
52 kg |
| Gross Width |
670 mm |
| Gross Height |
886 mm |
| Gross Depth |
660 mm |
| Gross Weight (kg) |
55.5 kg |
| Power/Ratings |
Electrical (Volts/Hertz/Amps) |
220-240V/ 50Hz |
| Heater Watts |
2100 W |
| Circulation Motor |
53 W |
| Drain Pump |
35 W |
| Levelling Screws |
0-45 mm |
| Smart |
Wi-Fi Embedded |
Yes |
| App Connectivity |
SmartThings App Support |
Yes |
Note: Specifications subject to changes without prior notice
