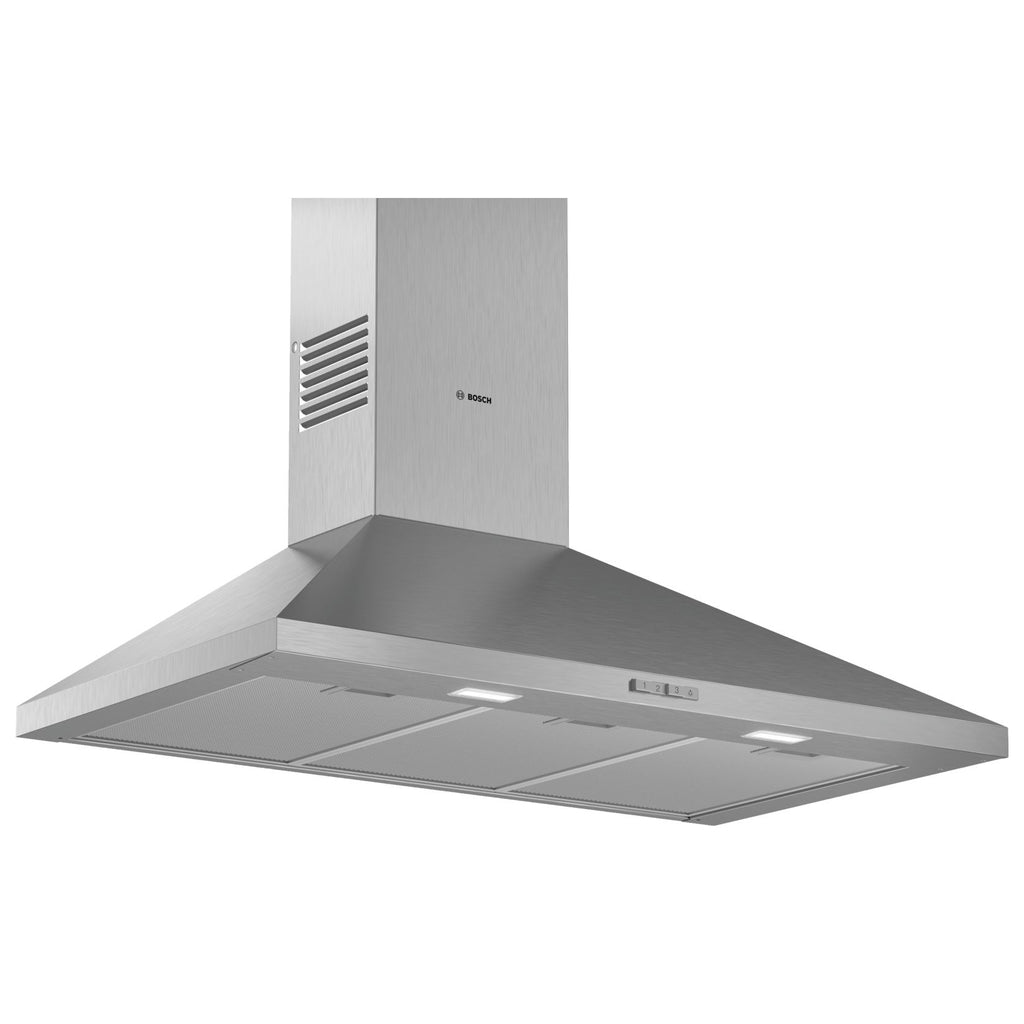

Bosch DWP96BC50B 90CM CHIMNEY HOOD

$1,399.00

$999.00
Free Delivery

INSTALLATION

Product Summary

  • Max. Extraction Rate: 626m³ according to EN61591

The wall-mounted chimney hood: Mount it on the wall for complete freedom in your kitchen planning

FEATURES

DESIGN

  • Wall mounted hood
  • 90 cm Chimney hood, Stainless Steel

PERFORMANCE

  • Extraction rate according to EN 61591 ø 15 cm:
    max. Normal use 626 m³/h
    Intensive NO_FEATURE m³/h
  • Energy Efficiency Class: A
  • Max. noise level according to EN 60704-3 and EN 60704-2-13: 69 dB(A) re 1 pW (56 dB(A) re 20 µPa sound pressure)
  • Noise max. Normal Level: 69 dB*

COMFORT

  • 3 fan speeds via push buttons
  • Removable metal grease filter, dishwasher safe

TECHNICAL INFORMATION

  • Suitable for ducted or recirculating operation
  • Dimensions exhaust air (HxWxD mm): 799-975 x 900 x 500
  • Dimensions recirculating (HxWxD mm): 799-975 x 900 x 500
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
  • Electrical connection rating: 220 W
  • Electrical cable lenght 1.3 m



Serie | 2 Wall-mounted cooker hood 90 cm Stainless steel DWP96BC50B DWP96BC50B-4



SPECIFICATIONS

GENERAL
Width 90 cm
Depth of the product 500 mm
Construction type Built-in
Operating Mode Convertible
Sound pressure max. normal 56 dB (A)
Total annual energy consumption 41.7 kWh/annum


CONSTRUCTION TYPE
Diameter of air outlet (mm) 120 / 150 mm
Colour Stainless steel
Grease filter material Washable aluminium
Grease filter type Kassette
Installation typology Wall-mounted
Material of the body Stainless steel
Motor location Integrated motor in hood body
Number of motors 1
Operating Mode Convertible
Typology Chimney


CONNECTION
Connection rating (W) 220 W
Length electrical supply cord (cm) 130 cm
Frequency (Hz) 60; 50 Hz
Total power of the motors (W) 215 W
Voltage (V) 220-240 V



DIMENSION DRAWING

DWP96BC50B
